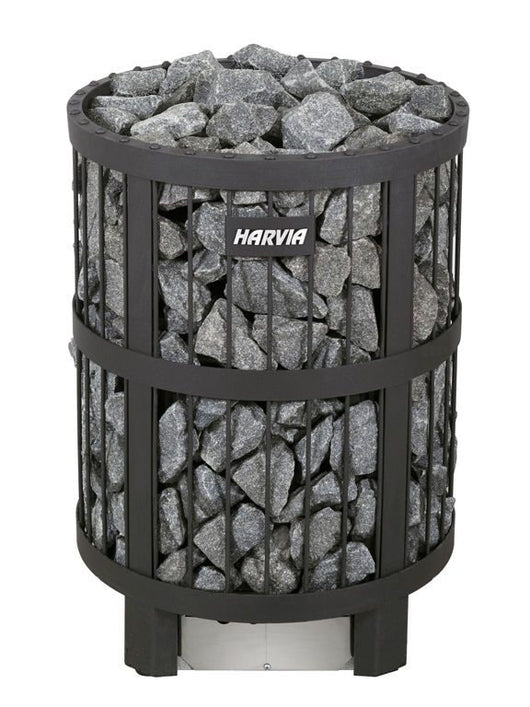

HARVIA LEGEND PRO Electric Sauna Heater 10 КW

For up to 600 cubic feet sauna room

HARVIA LEGEND gives you the ultimate sauna experience. This large heater takes you back to the origins – it entails the essence of the sauna. The powder-coated steel frame has a large amount of stones inside and as they heat up, even a larger sauna gets a magnificent sauna bath.  Due to the open structure of the stone space, you can throw water on the entire outer surface of the heater.  The heat stored in the large number of stones allows you to throw more water even at a lower temperature – you’ll get a delightfully wet and humid bathing experience.

Due to the circular form, the Harvia Legend heater can be installed to the middle of the sauna or embedded to the benches.

• powder-coated steel
• 1-year warranty

THE SET INCLUDES

• electric sauna heater

REQUIRES ALSO

• HARVIA Xenio CX170-U1-15 control unit
• stones (5-10 cm) | 6 x 20 kg cartons

HEATER

• Sauna room:  11-17 m³ | 390-600 ft³
• Output:  10,000 Watts
• Stone capacity:  120 kg | 265 lb
• Weight:  33 kg | 73 lb
• Height:  740 mm | 29 in
• Width:  530 mm | 21 in
• Depth:  530 mm | 21 in

ELECTRICAL

• 240V (1 Phase), 41.7 Amp
• 1 x #6/2 copper wire 90°C (main panel to load center)
• 4 x #10/2 copper wire 90°C (load center to power unit)
• 4 x #10/2 copper wire 90°C (power unit to heater)

MANUALS | INSTRUCTIONS | DOWNLOADS
